380V SUS304 Water Bottle Filling Machine 50HZ Bottled Water Production Machine

Name: 380V SUS304 Water Bottle Filling Machine 50HZ Bottled Water Production Machine
Brand: Aquatrin
Price: 2000 USD

Quality 380V SUS304 Water Bottle Filling Machine 50HZ Bottled Water Production Machine wholesale

Brand Name : Aquatrin

Model Number : QGF

Certification : ISO CE

Place of Origin : China

MOQ : 1unit

Price : USD2000-60000 1Set

Payment Terms : T/T

Supply Ability : 10units per month

Delivery Time : 45days

Packaging Details : wooden package

Usage : Water Filling 5 Gallon

Keywords : Filling Packing Machine

Filling range : 3-5 Gallon

Filling Material : Water, carbonated drink

Product name : 600bph 5gallon bucket 20 liter bottled water filling machine

Packaging Type : Barrel

Contact Now

Product Description

380V SUS304 Water Bottle Filling Machine 50HZ Bottled Water Production Machine

Product Application.

1/Auto Bottle Uploader
2/ Decapping Machine
3/ Outside Brusher
4/ Inside Brusher
5/Rinsing Filling Capping Machine <with Cap Elevator and Sterilization System>
6/ Light Inspector+Cap Seal Shrink Machine
7/ Finished Products

Containers and Specifications
Project Name: Full Automatic Complete 60-1200BPH 3-5 Gallon Barrel Filling Production Line			Mineral Water / Pure Water
Material	Shape	Filling volume	Filling Type
PC / PET	Round or Square	3 - 5 Gallon	Gravity filling Normal temperature
Adjustable Specifications of Bottle Type	Size of Barrel : ф276×490mm
	Customers need to buy additional change-over parts for the different bottles. If using square bottles, then bottle separating system will be added.
Container Label	Sticker Label / Shrink Wrap Label / Prinetr Label
User Ambient Conditions	Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification	Voltage:380V±5%, 3phase; Frequency:50HZ±1%

Main Features.

QGF type barreled water producing line is the core equipment in the 5 Gallon barreled drinking water producing line. It is the ideal equipment for mineral water, distilled water and purified water producing process. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical parts adopt products with brand of SIEMENS and OMRON. Pneumatic parts adopt products with brand of AIRTAC. Both the inner and outer shower nozzle for washing barrel adopt the special technology equipment from American sprayer company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.

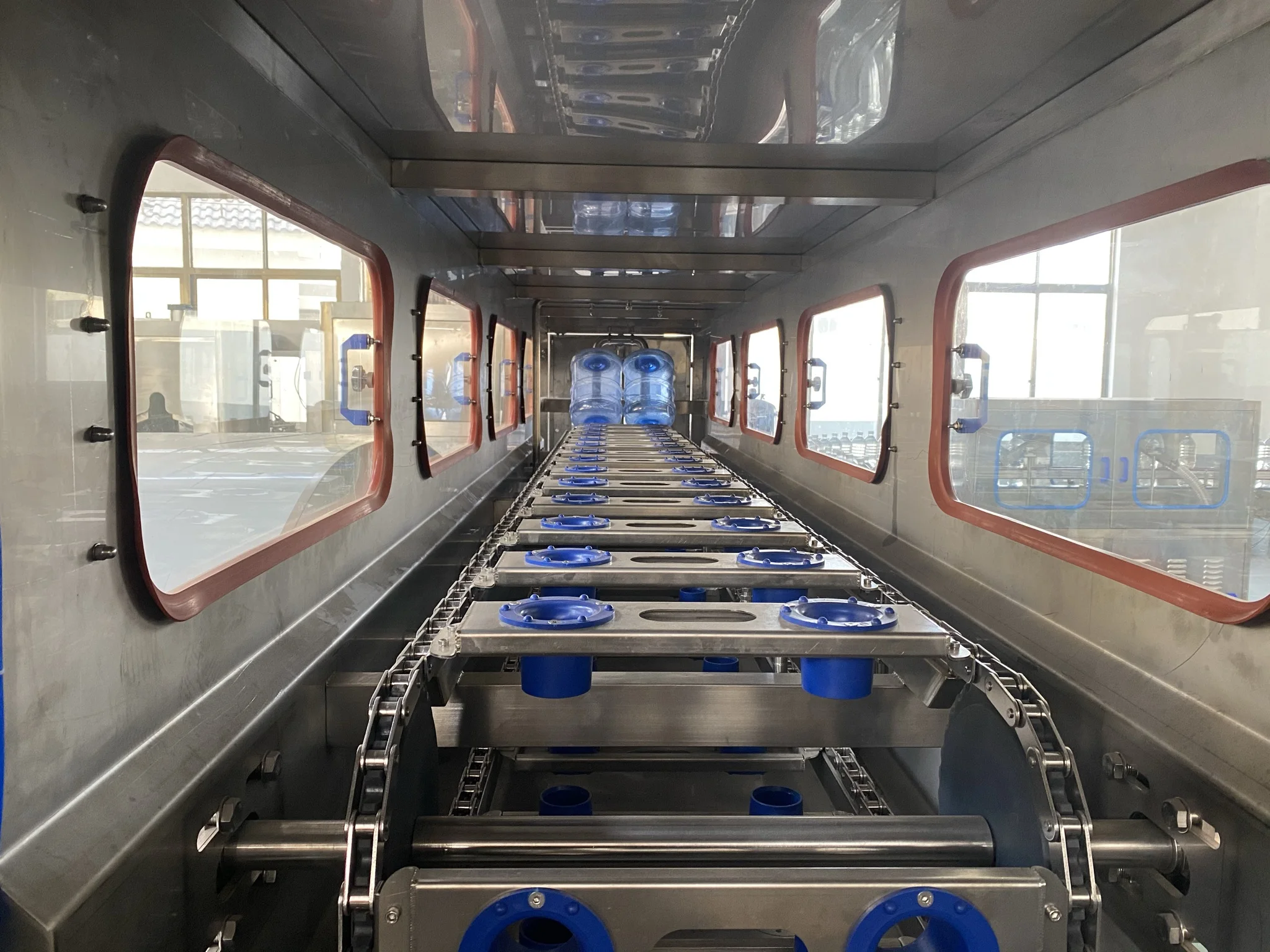

Automatic Bottle Loading System

380V SUS304 Water Bottle Filling Machine 50HZ Bottled Water Production Machine

Model: IBW-8/16

Function: wash & disinfect the internal 5 gallon bottle with hot alkali water, detergent

water,cycle water, production water

Technical Parameter

Washing capacity: 1200 bottles per hour

Washing station: 8pcs

Washing stops: 16pcs

Each washing stops washing time: 18 seconnds

Washing tank: 4pcs ( hot hot alkali water tank, detergent water tank, cycle water tank, production water tank)

Washing pump 4pcs fixed with each water tank.

380V SUS304 Water Bottle Filling Machine 50HZ Bottled Water Production Machine

Water Filler

Model: RF-8E

Function: to fill the production water into empty bottle,Technical Parameter:

Filling Nozzle: 8pcs SUS304

Filling Capacity: 1200 bottle per hour

Suitable to bottle dimension: 3,5,6 gallon bottle

Drive motor power 2.2kw 1pc

Dimension: 1800×1200×2500mm

Weight: 600kg

Feature:

Gravity style filling nozzle, high filling precision

Under PLC control, full-automatic working

SUS304 water bowl, inside polish

SUS304pipeline, valve and other contact parts

Emergency stop button

Automatic alarm system when accident

380V SUS304 Water Bottle Filling Machine 50HZ Bottled Water Production Machine

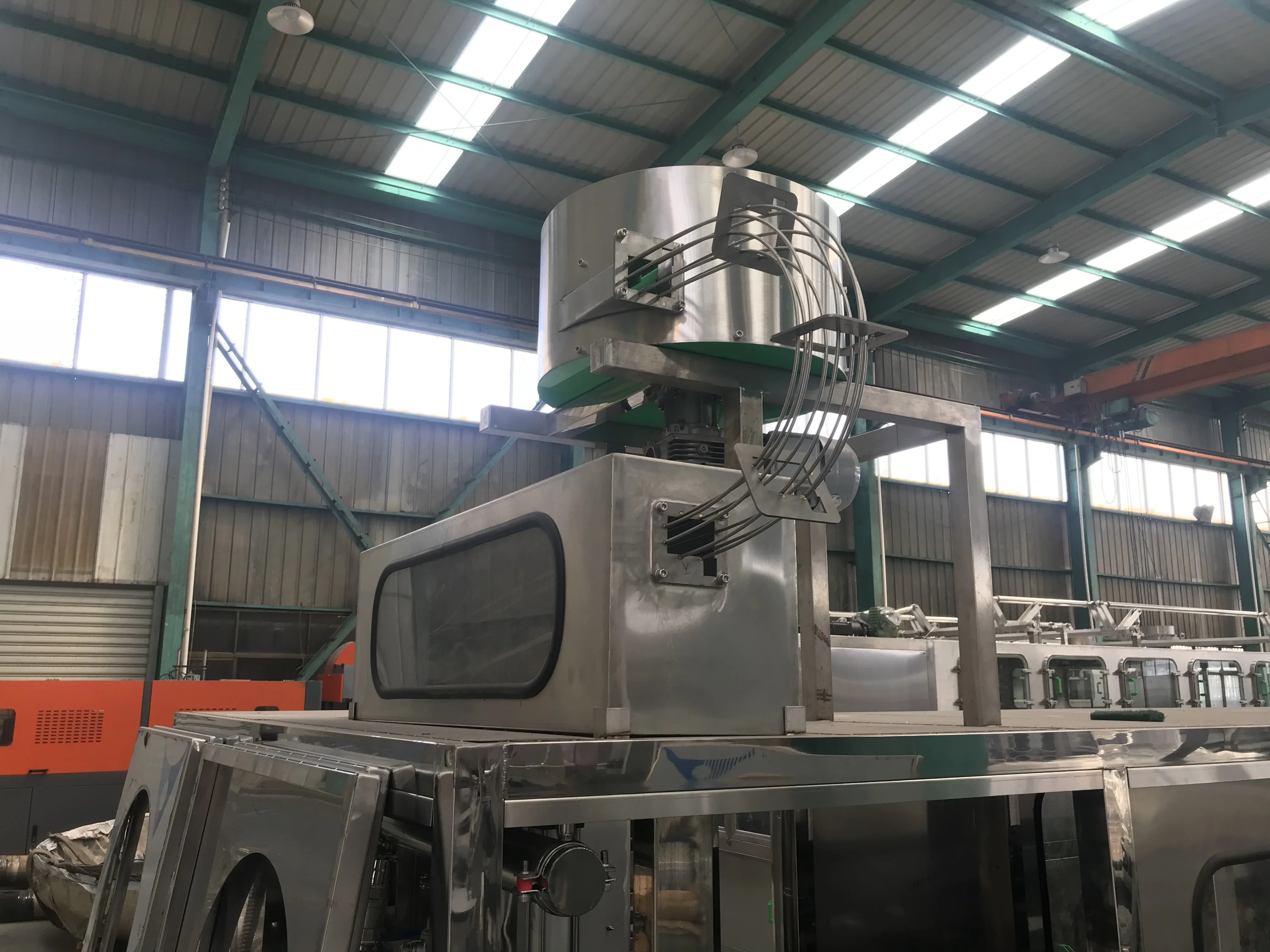

Caps Chain Plate Capper

capping the bottle by chain plate station

Techincal Parameter:

Capping capacity: 1200BPH

Feature:

Automatic caps arranging,caps washing and caps delivery.

Lack of caps automatic start, full of caps automatic start

Chain plate capping station, steadily & smoothly

SUS304 pipeline, valve and other liquid contacts parts

380V SUS304 Water Bottle Filling Machine 50HZ Bottled Water Production Machine

Detailed Images

Washing part for filling machine

Washing Part
Function : washing bottle inside and outside dust .
<1>All 304/316stainless steel rinse heads, water spray style
 inject design, more save water consumption and more clean
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal
 bottle crash during washing
<3> 304/316 stainless steel washing pump

Filling Part For Filling Machine

Filling Part Fucntion : filling water into bottle .
<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume
 adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish,
 no death corner, easy to clean
<4> 304/316 stainless steel filling pump

Capping Part For Filling Machine

Capping Part
 Function : put caps on bottle .
<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make
 sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction <3> No bottle no capping
<4> Automatic stop
 when lack of bottle
